MQTT cheat sheet

Iot Mqtt 401 words 2 minutes

MQTT cheat sheet

Term Explanation
Diagram
Client A program or device that uses MQTT. Client:
  • opens the Network Connection to the Server
  • publishes Application Messages that other Clients
  • subscribes to request Application Messages
  • unsubscribes to remove a request for Application Messages
  • closes the Network Connection to the Server
 /posts/mqtt_cheat_sheet/client.png
Server (Broker) A program or device that acts as an intermediary between Clients which publish Application Messages and Clients which have made Subscriptions. Server:
  • accepts Network Connections from Clients
  • accepts Application Messages published by Clients
  • processes Subscribe and Unsubscribe requests from Clients
  • forwards Application Messages that match Client Subscriptions
  • closes the Network Connection from the Client
 /posts/mqtt_cheat_sheet/server.png

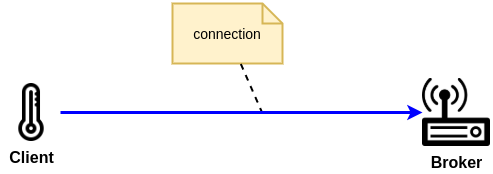

Connection Connects the Client to the Server. Provides the means to send an ordered, lossless, stream of bytes in both directions. /posts/mqtt_cheat_sheet/connection.png
Session A stateful interaction between a Client and a Server.

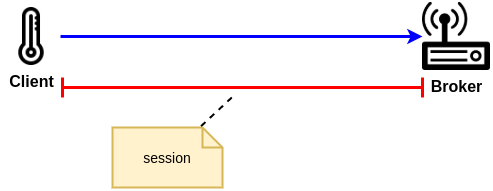

Some Sessions last only as long as the Network Connection, others can span multiple consecutive Network Connections between a Client and a Server.		 /posts/mqtt_cheat_sheet/session.png

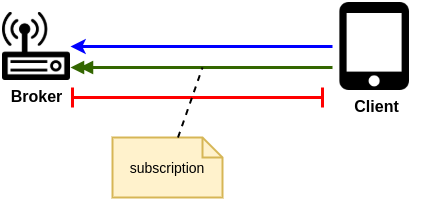

Subscription Subscription comprises a Topic Filter and a maximum QoS. A Subscription is associated with a single Session. A Session can contain more than one Subscription. Each Subscription within a Session has a different Topic Filter. /posts/mqtt_cheat_sheet/subscription.png

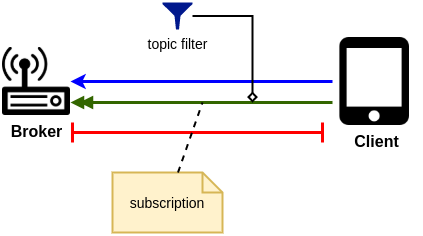

Topic Filter An expression contained in a Subscription to indicate an interest in one or more topics. A Topic Filter can include wildcard characters. /posts/mqtt_cheat_sheet/topic_filter.png

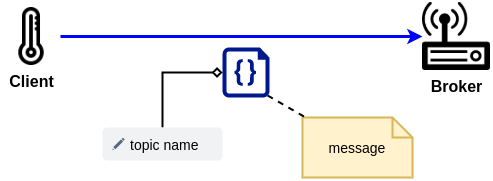

Topic Name The label attached to an Application Message which is matched against the Subscriptions known to the Server. /posts/mqtt_cheat_sheet/topic_name.png
Application Message The data carried by the MQTT protocol across the network for the application.
When an Application Message is transported by MQTT it contains:
  • payload data,
  • a Quality of Service(QoS),
  • a collection of Properties,
  • a Topic Name.

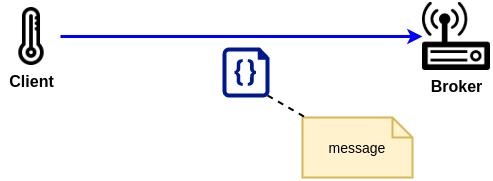

 /posts/mqtt_cheat_sheet/message.png

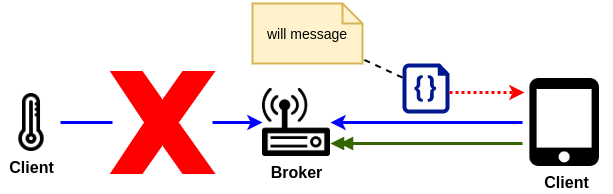

Will Message An Application Message which is published by the Server after the Network Connection is broken. /posts/mqtt_cheat_sheet/will.png
QoS 0 At most once delivery

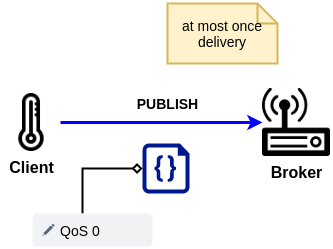

The message is delivered according to the capabilities of the underlying network. No response is sent by Sever and no retry is performed by the Client. The message arrives at the Server either once or not at all.		 /posts/mqtt_cheat_sheet/qos0.png
QoS 1 At least once devilery

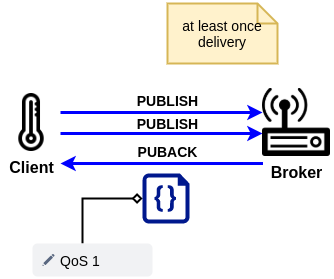

A QoS 1 PUBLISH packet sent by Client is acknowledged by a PUBACK packet sent by Server. The message arrives at the Server once or more times.		 /posts/mqtt_cheat_sheet/qos1.png
QoS 2 Exactly once delivery

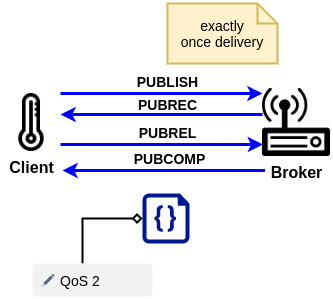

The Server PUBLISH packet acknowledges receipt with a two-step acknowledgement process. For use when neither loss nor duplication of messages are acceptable. There is an increased overhead associated with QoS 2.		 /posts/mqtt_cheat_sheet/qos2.png

PDF version

PDF version of this MQTT cheat sheet - download.
